FC40 Fluxgate Compass
 Rate This Product
|
|
| Brand: | |
| List Price: |
$681.99 |
| Our Price: |
$417.45 |
| Total Price: In Stock. Usually ships in 1-2 business days |
|
 |
|
FC40 Fluxgate Compass Feature
- SIMRAD FC40 FLUXGATE COMPASS
- Mounting Style = NONE | Output Frequency (mHz) = N
FC40 Fluxgate Compass Overview

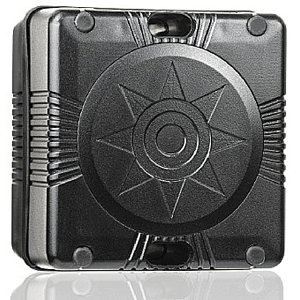

Simrad FC40 Fluxgate Compass
The Simrad FC40 fluxgate compass is designed for connection to the SimNet network. It is equipped with 5,5 m (18 feet) of SimNet cable with connector. The compass transmit the heading even if the autopilot is switched off.
Input from SimNet
- Heading offset
- Calibration start
- Software upload
Output on SimNet/NMEA2000 Format
The compass is NMEA2000 compatible and outputs PGN 127250.
- Calibrated heading, transmission rate of 20 Hz when selected as heading source on SimNet, otherwise 1 Hz.
- Magnetic field data
- Error messages and status information
Specifications:
- GPS/Navigation:
DGPS: Heading Accuracy +/- 3 degrees after calibration - Autopilot/Autosteering:
Automatic Compass Calibration - Yes - Technical/Environmental:
Housing - Off white ABS
Mouting - Deck or bulkhead
Width - 102.4 mm / 4 in.
Height - 72 mm / 2.8 in.
Length - 106.4 mm / 4.2 in.
Weight - 0.4 kg / 0.88 lbs. - Power:
Power Supply - 8-16V via SimNet vDC
Power Consumptioni - 1,4 W - Other:
Compass Safe Distance - 500 mm / 19.7 in.
List of Specified Standards - Environmental Protection: IP56
Operating Temperature - 0 to +55 degrees
Operating Temperature Stored - -30 to +70 degrees
